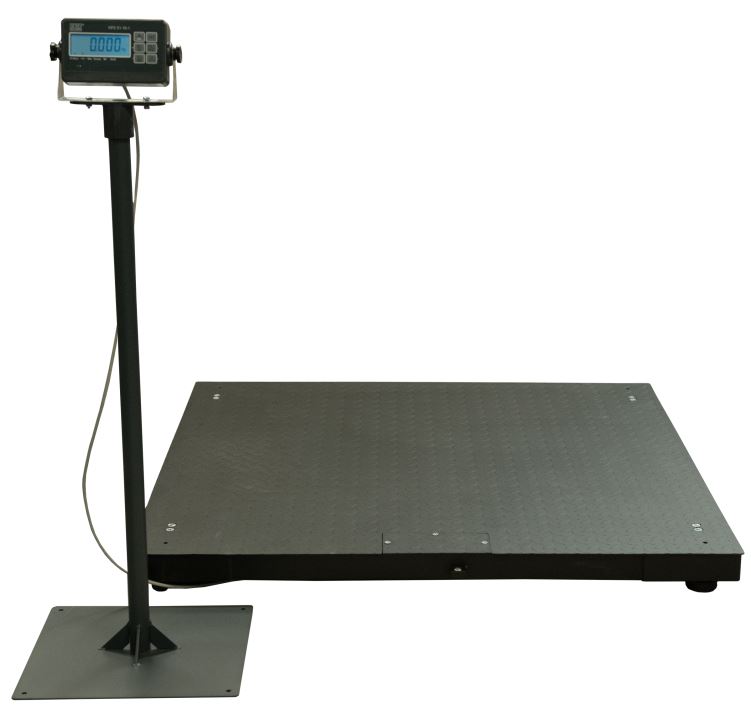

KPZ 2 S Platform scale
High quality industrial platform scale, long service life, solid and stable steel construction black powder painted, structured plate.Scales are designed to minimize distortion under heavy loads, and ensure years of dependable performance.
Floor scales KPZ 2 SCM, for use with or without EU approval, high quality industrial platform, long service life, solid and stable steel construction black powder painted, structured plate make this scales the ideal solution for industry, transport, stock control, warehouse and any other kind of general purpose weighing.
Load cells: High quality load cells DMS type KPZ 502E-2, IP 67,OIML C3. Indicator: KPZ 51E-8 (possibility to deliver without indicator), 5 meter cable, sheltered at way out of scale in case of mechanical damage.
Certification: EC approval possibility class III, Declaration of Conformity.
Construction: steel, welded frame made of profile with diagonal reinforcement and solid structured plate, black powder painted (option: galvanized or stainless construction-see KPZ 2N stainless steel scales). Indicator connection cable: length 5 m. Special flat construction is suitable for ground placing. With regard to solid DMS load cells there are no wearing out parts.
Weighing system: 4 high quality DMS load cells KPZ 502E-2, IP67, EC approval possibility class III.
Standard indicator KPZ 51E-8: easy and comfortable maintenance, solid, robust ABS housing, keyboard covered with a dust- and water-proof foil, with large function keys. Large LCD-Display with backlight allows proper weighing result read-out, to use with almost every industrial conditions.
Functions : Zero, 100% tare (also multiple tare), minus indication, switch Net and Gross weight. Options to set via menu: targetweight check tolerance, limit value control (limit= range of Low/Ok/High), automatic selftest.
Indication : weight, zero setting, tare, stability, charging status, LOW-Bat indication, limit value control.
Power supply: 230 V, battery version (option).
Indicator options: Please contact us, we will help you to choose an option tailored to your needs.
Alternatively, you can choose from the options below.
Warranty: 24 months on proper material and workmanship features, normal use appropriately.
Calibration protocol as an option. Price on request.
