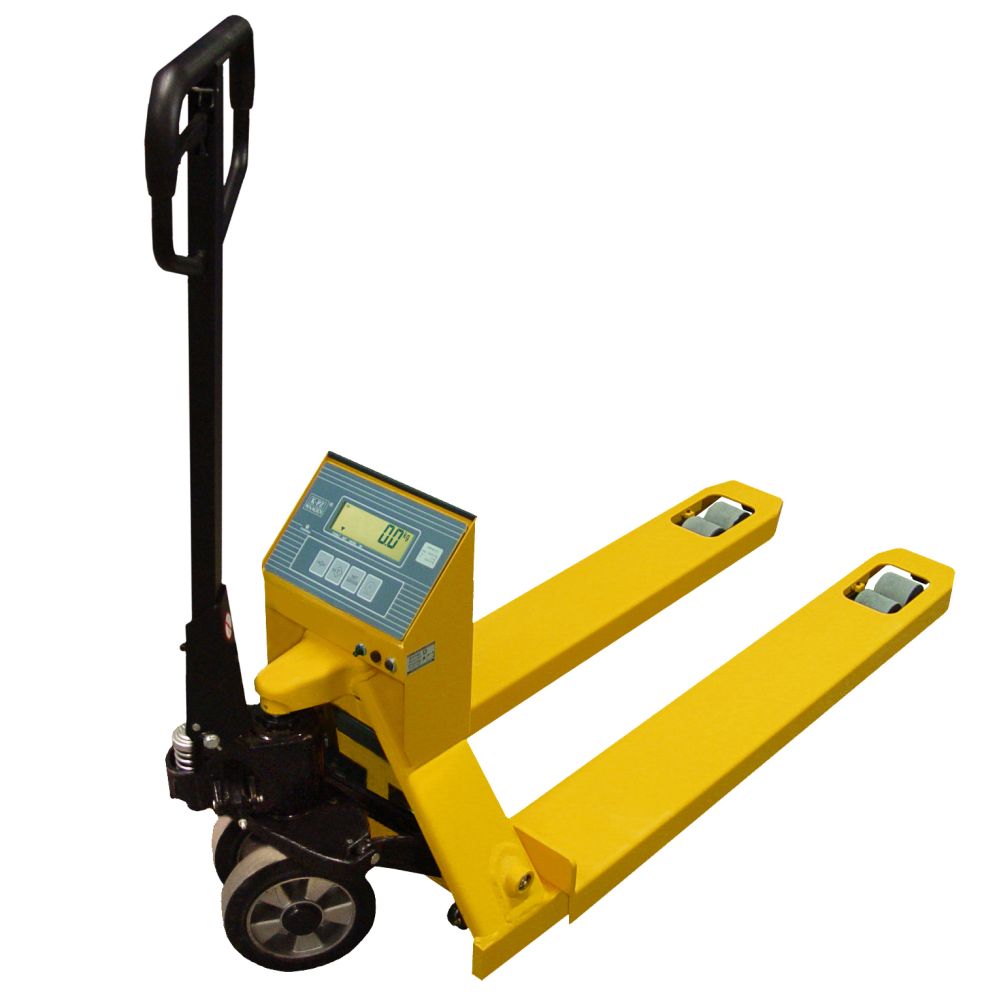

KPZ 71-8 Palletweigher

Working hours saved by mobile weighing, simply move the pallet scale directly under the load, pump, weigh and drive the load to the point of use.




Construction: high quality, for industrial use, long exploitation period, very solid and stable steel construction with steel plate, designed for weighing, powder painted, yellow colour (RAL 1003), welded drawbar. Safe, proven in industrial use hydraulics. Large, rubber steering wheels, diameter 200 mm. Wheels suspension guarantees stability and movement fluency, built in lubrication grease nipples guarantee long operating life of all movable construction parts. Indicator described below is built in a robust steel housing on height comfortable for operator.

Load cells: High quality load cells KPZ 502E-2,  IP 68, OIML C3; EC approval possible.

Certification: EC approval possibility class III, declaration of conformity, approved version.

Indicator type KPZ 51E–17: Built in a stable, robust steel housing, easy to operate keyboard, covered with a dust and water-proof foil, large function keys, 6 digit LCD-Display with back-light function, easy readable 25mm high digits. Operating temperature –10°C to 40°C. Power supply: 6V battery, operating time approx 36 hours, recharging time max. 10 hours (normally carried out overnight). Charging device is included in unit price.

Function: zero setting, 100% tare (multi tare), minus indication, switch Net and Gross weight.  Options to set via menu: targetweight check tolerance, limit value control, automatic selftest.

Option:  backlight function, inbuilt printer.

Alternatively, you can choose from the options below.

Indication: weight, Zero setting , tare, stability, charging status, LOW-Bat indication, limit value control

Warranty: 12months on proper material and workmanship features, normal use appropriately.
