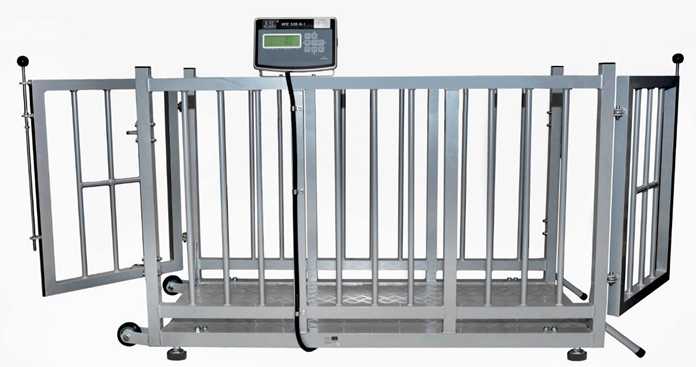

KPZ 2AN Animal scale 300kg Stainless Steel constration

KPZ 2AV  Animal scale  300kg Stainless Steel constration Solid and stable scales series KPZ 2AA. German design and own EU production guarantees high quality. Designed as floor scales, for agriculturalweighing. High accuracy. Maintenance-free high quality construction of Aluminum





Description

Low construction scale, type: KPZ 2DN, for use with or without EU approval.

Low construction scale with drive in option and passing drive option, in special construction with lowered weighing platform. Possibility to easy drive on with heavy load through 1 ramp (standard) or two ramps (option). Platforms are designed for easy loading with the ramp built into the scale for a compact all in one unit.

Construction: robust, welded construction stainless steel (material DIN 1.4301), solid plain top plate of platform made of one piece without welded connection and hole. Special flat construction. High quality industrial platform, long service life, solid and stable construction stainless steel (material DIN 1.4301), Plain top plate of platform made of one piece, with 1 x ramp.

Load cells: High quality load cells DMS type KPZ 502E-2, IP 67,OIML C3. 5 meter cable, sheltered  at way out of scale in case of  mechanical damage.

Certification: EC approval possibility class III, Declaration of Conformity.

Indicator KPZ 51E-9-1: 6 digit 25 mm high LCD-Display,with backlight function, large function keys Pre-set / limit value control, simple piece counting, EC approved class   up to 10.000 e, user-friendly. Operating temperature from –10°C up to +40°C.

Functions: automatic and manual zero setting, switch Net/Gross weight, 100% tare, multiple tare, unit switching, simple piece counting by reference no. 10, 20, 50, 100 i 200. Minus indication, LCD backlight, automatic shutoff after 0-9 minutes, pre-set value control or limit value control  LOW – OK - HIGH ( any two Weight values to choose, tone or light sygnal), electronic stabilization filter, automatic selftest, error messages.

Indication: zero setting, gross, net, stability, LOW-Bat indication, pre-set/limit value, too small piece quantity or too small weight.

LED: charging status.

Power supply: 230 V, battery version (option).

Indicator options:  Please contact us, we will help you to choose an option tailored to your needs .

Alternatively, you can choose from the options below.

Warranty:   24 months on proper material and workmanship features, normal use appropriately.
