Description

KPZ 2 - 08 -2 counting scale system uses two platform scales:reference counting scale and a higher capacity counting scale platform linked together. With this combination you have two scales capable of weighing & counting various load-capacities simultaneously. The counting reference scale has a platform size of  210 x 290 mm. All electronics are housed internally within the reference scale. The front fascia incorporates three separate LCD displays. The front numeric keypad has the following functions: addition function keys, automatic zero setting, counting summarisation, tare- / piece weight input by weighing-in or manual input. Minimal piece weight for the piece count: 1/5 el. of the indication step. Power supply mains and battery. The battery charger 220 V, /50 Hz  is included in the price. Internal division : 60.000 .

Functions: 3 LCD's, 6-digit, 14 mm high, 100 % -tare weight input by weighing-in or manual input, negative value indication, automatic calibration, manual and automatic addition function, check function for piece quantity, check function for weight, automatic piece weight new calculation. Self-test function, automatic zero setting, NET weight display, scale 1 or 2-function indication, Memory accumulation M+. Option : RS 232 C, serial output  and printer.

Counting Scale Platform: For this platform you can select from a number of different platform types: KPZ 1, KPZ 2, KPZ 71,  or KPZ 2-06.For further information on these specific scales please review the relevant datasheets.

Technical specification: counting scale system KPZ 2 – 08 - 2

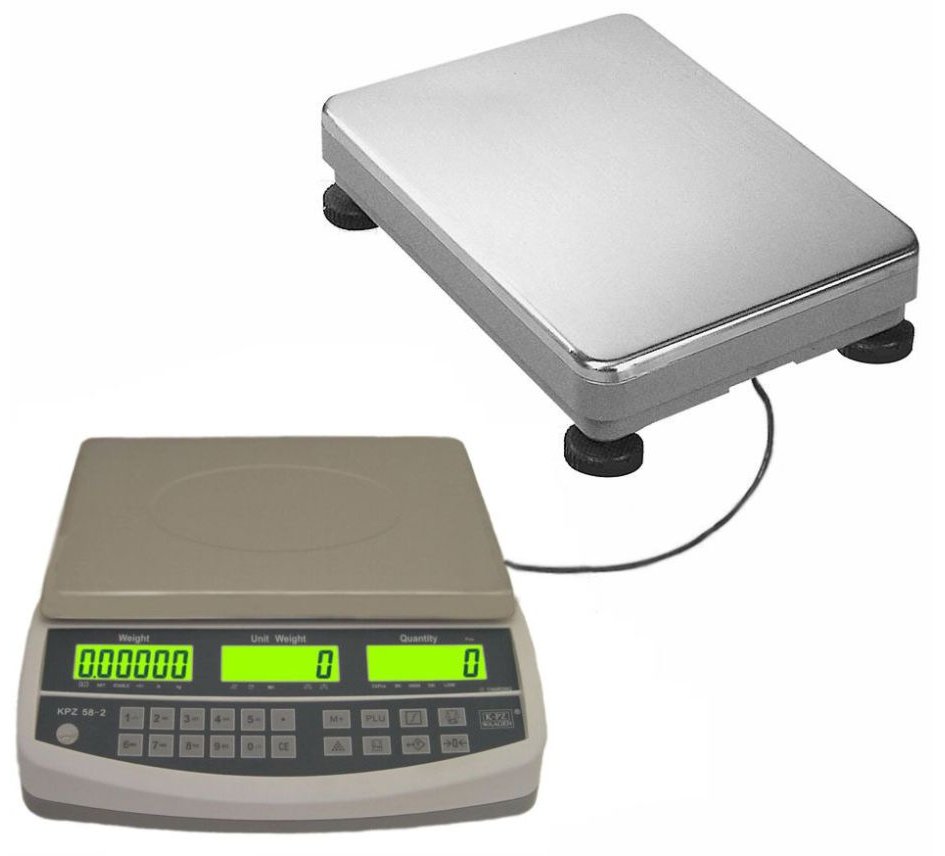

Example of combination
